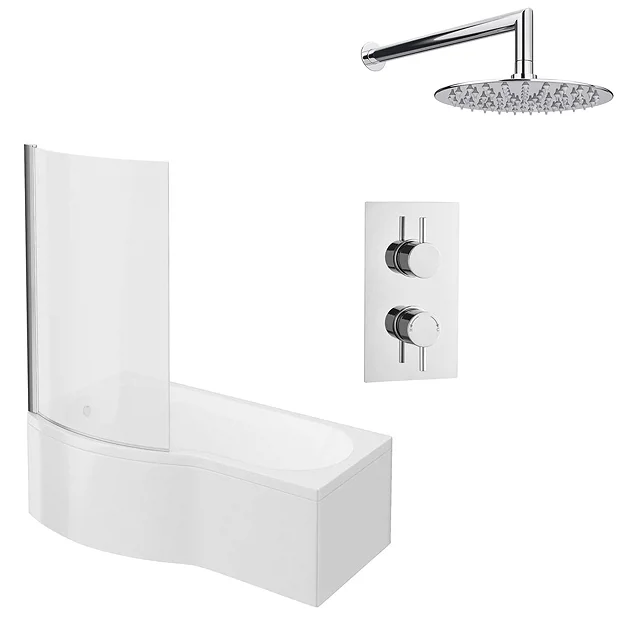

Cruze Shower Bath + Concealed 1 Outlet Shower Pack (1700 B Shaped With Screen + Panel)

Cruze Shower Bath + Concealed 1 Outlet Shower Pack (1700 B Shaped with Screen + Panel)

The Cruze shower bath with concealed thermostatic Shower package, features a stylish overhead ultra thin rainfall type round shower head.

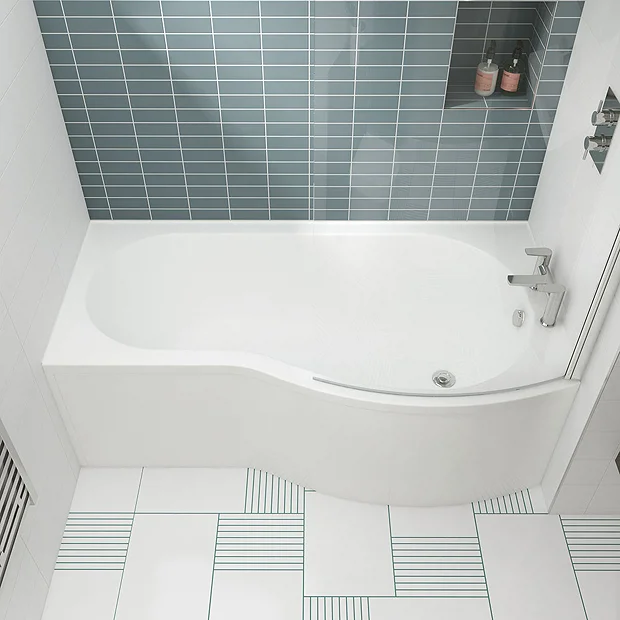

Modern shower baths which allow showering and bathing space in the bathroom. This 1700mm shower bath comes with a curved hinged bath screen and matching front panel manufactured from high quality gloss white acrylic.

All of our shower baths are available in left or right hand configuration, and are the new ideal solution for families looking to add a little luxury, whilst keeping an eye on space.

Please note, optional bath end panel (BBTEP) sold separately.

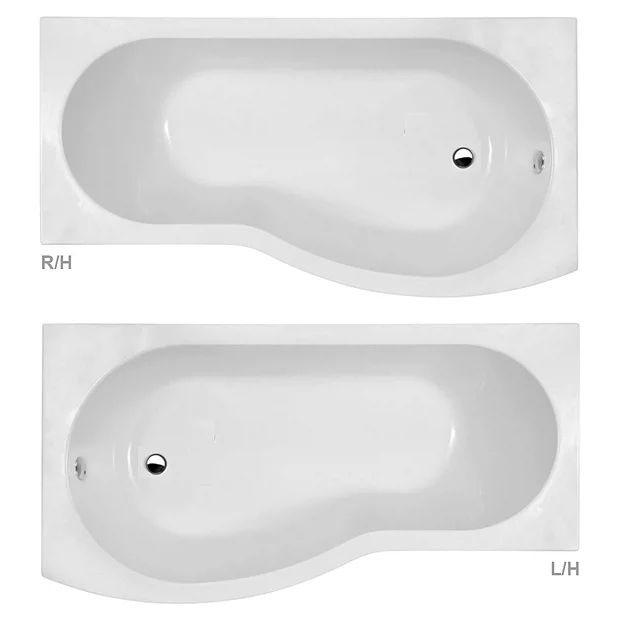

Bath Details

• Type: B-Shaped Shower Bath
• Dimensions: width 1700 x (depth at widest point) 900 / depth 736mm
• Bath Volume: 240 Litres
• Clean elegant contemporary design
• Choice of Right or Left hand bath tub
• High quality build
• Practical design solution
• White Gloss Acrylic
• No tap holes
• White Gloss Acrylic Side Panel Included
• Supplied with Leg Set
• Guarantee: 5 Year

Curved Bath Screen Details

• Height: 1435mm
• Width: 850-870mm
• Manufactured to the Highest Standards
• Polished chrome
• Reversible
• Hinged bath screen
• Metal caps
• 5mm toughened safety glass
• Guarantee: 5 Year

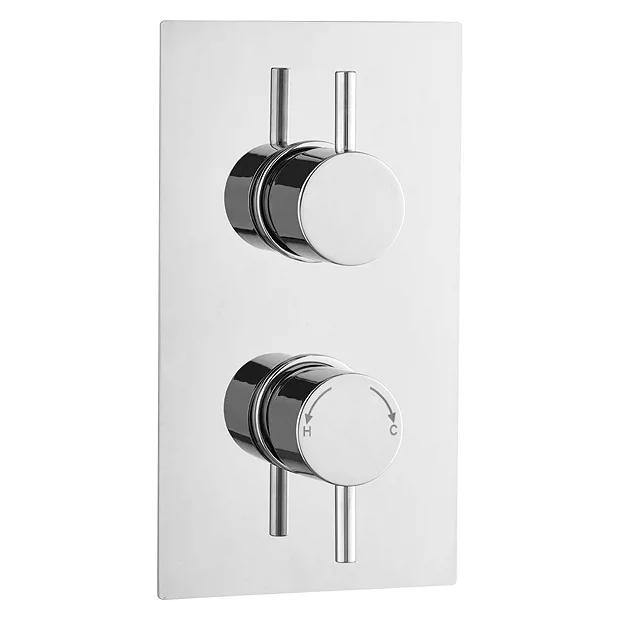

Concealed Shower Valve Details

• Height: 215mm
• Width: 120mm
• Depth: 140mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round with Lever Handles
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

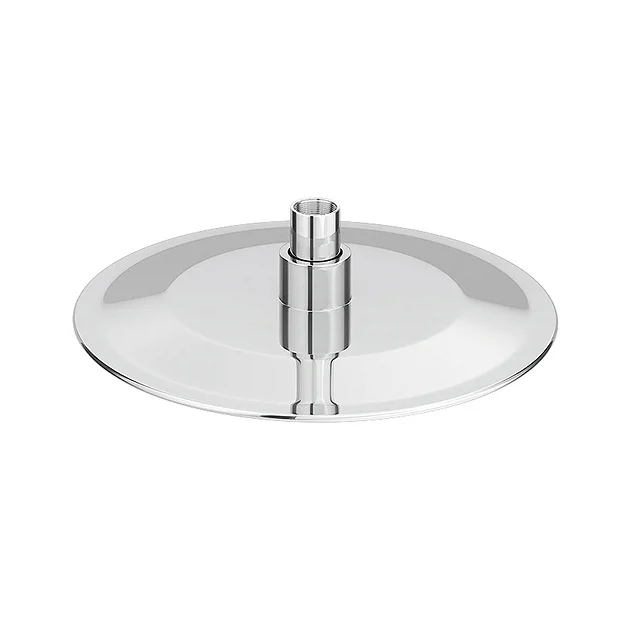

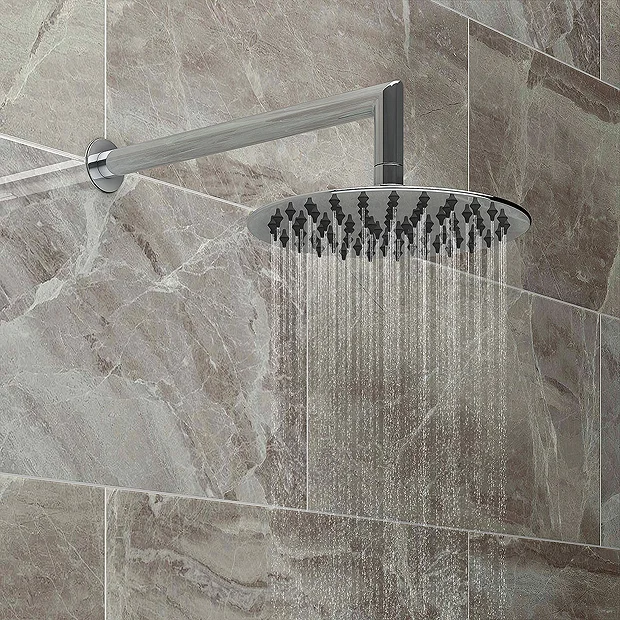

Shower Head + Arm Details

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head: Diameter 200mm
• Shower Arm Length: 460mm
• Wall mounted
• Type: Rainfall
• 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint
• Rub clean nozzles makes this item easy to clean and maintain
• Guarantee: 5 Year

End Panel, taps + waste not included

All measurements are approximate

Product images for illustration purposes only

Tap holes have to be drilled by customer

Comprises

(1) 1700mm B-Shaped Shower Bath with Leg Set
(1) B-Shaped Acrylic Bath Front Panel
(1) 5mm Curved Bath Screen
(1) Cruze Twin Modern Square Concealed Shower Valve – Chrome
(1) Cruze Wall Mounted 90 Degree Bend Shower Arm 460mm – Chrome
(1) Cruze Ultra Thin Round Shower Head with Swivel Joint (200mm)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
