Milan 500 X 840mm Heated Towel Rail (incl. Valves + Electric Heating Kit)

Milan 500 x 840mm Heated Towel Rail (incl. Valves + Electric Heating Kit)

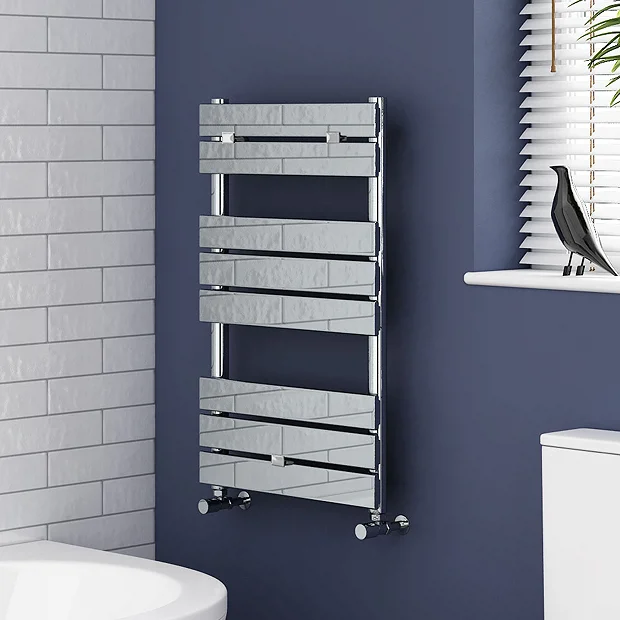

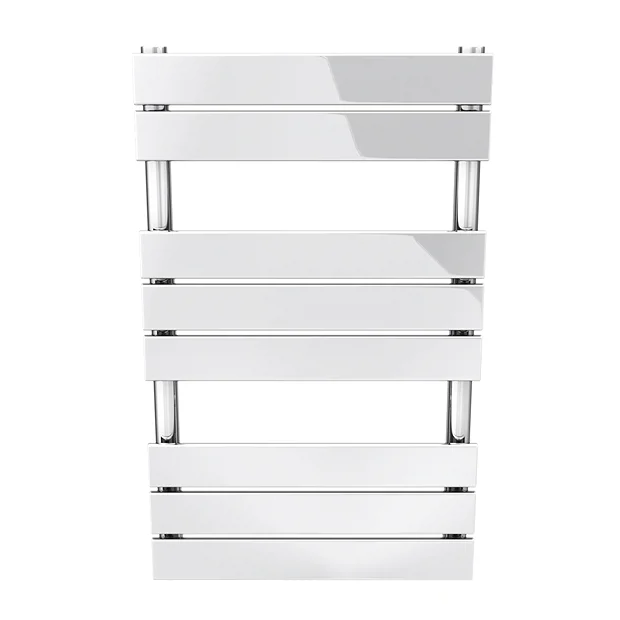

The Milan 500 x 840mm heated towel rail is finished in chrome and features 8 horizontal rails. Designed to be plumbed into the main central heating system and used as a radiator/towel rail. It also can be wired into the electric mains for summer towel warming.

**Supplied with Radiator Valves & Summer Electric Heating Kit.**

Towel Rail Details

• Height: 840mm
• Width: 500mm
• Depth: 45mm
• Size, type and position of connections: 1/2″ FI BSP
• Dry Mass: 11.4kg
• Content: 3.3lt
• BTU T50: 1022
• ∆ Watt T50 °C: 300
• Max Operating Pressure: 8 Bar
• Colour/Finish: Polished Chrome
• Material: Durable Steel
• Bars: 8
• Flat Tube Model
• Profile: Straight
• C/C Tappings (distance between pipe centres): 450mm
• Vertical tube: 38 x 1.5mm round tube,
• Horizontal tube: 68 x 12 x 1.5mm flat tube
• Supplied with fixing kit, including plugs and vents.
• Max Operating Pressure: 8 Bar
• Guarantee: 5 Year (Please Note: According to EN-442 norm, the CE label must stay on the product. In case of removal, warranty will expire.)

Radiator Valves Details

• Height: 82mm
• Depth: 51mm
• Diameter: 31mm
• Material: Brass
• Finish: Chrome
• Angled Valves
• Comes as a Pair
• Guarantee: 5 Year

Heating Element Details

• Towel Warmer Heating Element, 300W 1/2″ BSP incl. Chrome Tee.
• Fits any 1/2″ BSP wet system towel warmer to give heating on demand when the central heating system is off.
• Ideal for summer use.

Dual Fuel Radiator: Connected to the central heating system, and also to the electric socket.

Pictures for illustrative purposes only

We recommend pipework is not installed until receipt of radiator or heated towel rail

Please Note: Requires electrical connection by an approved electrician.

*Fused spur sold separately

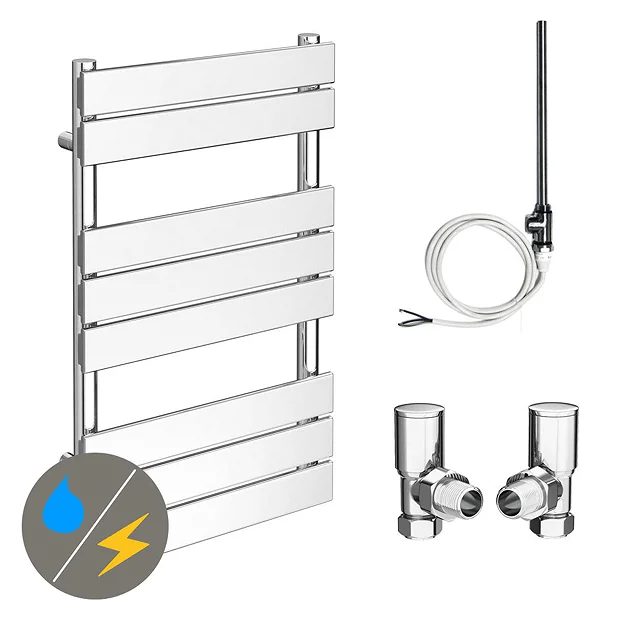

Comprises

(1) Milan Heated Towel Rail – 500 x 840mm
(1) Pair of Modern Angled Radiator Valves – Chrome
(1) 300W Electric Radiator Heating Element
