Milan Shower Bath + Exposed Shower Pack (1700 L Shaped With Screen + Panel)

Milan Shower Bath + 2 Outlet Exposed Thermostatic Shower Package (1700mm L Shaped with Screen + Panel)

Spruce up a tired bath shower area with the Milan Shower Bath and Exposed Shower Pack. The L shaped shower bath gives you room to stretch out when washing, extending to a roomy 1700mm length. It’s finished in gleaming gloss white for a modern look and comes complete with a hinged bath screen that prevents fixture damaging splashes when using the accompanying chrome plated shower. Its thermostatic function prevents scalding – so you can feel completely safe. Use the handset and slider for an adjustable height, or the fixed head for a rainfall effect that gives fuller body coverage. Available in Left and Right Handed versions.

Please note, optional bath end panel (WBS301) sold separately.

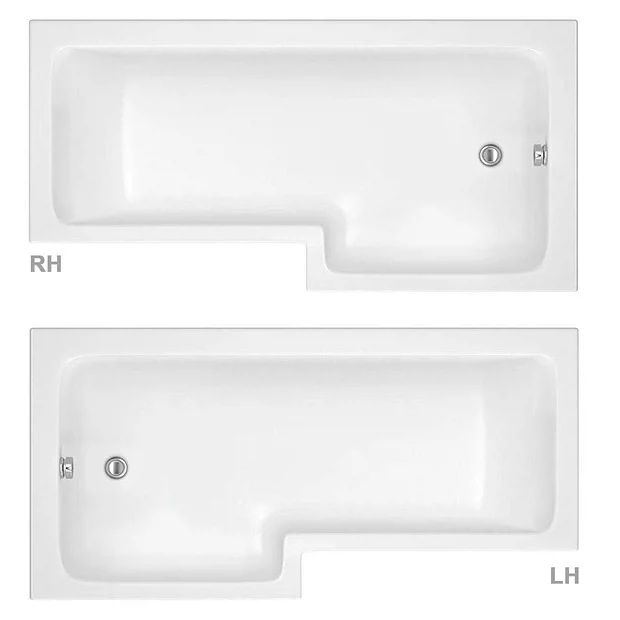

Bath Details

• Dimensions: 1700mm x 700mm (850mm at widest point)
• Colour/Finish: Gloss White
• Material: Acrylic
• Comes with metal bath legs
• Supplied with quality acrylic front panel
• Guarantee: 5 Year
• Bath will have a protective plastic film which should be removed once installed


Bath Screen Details

• Height: 1400mm
• Width: 805mm
• Polished chrome
• Reversible
• Hinged Screen with fixed return
• Metal caps
• 6mm toughened safety glass.
• Suitable for use with square shower baths.
• Guarantee: 5 Year

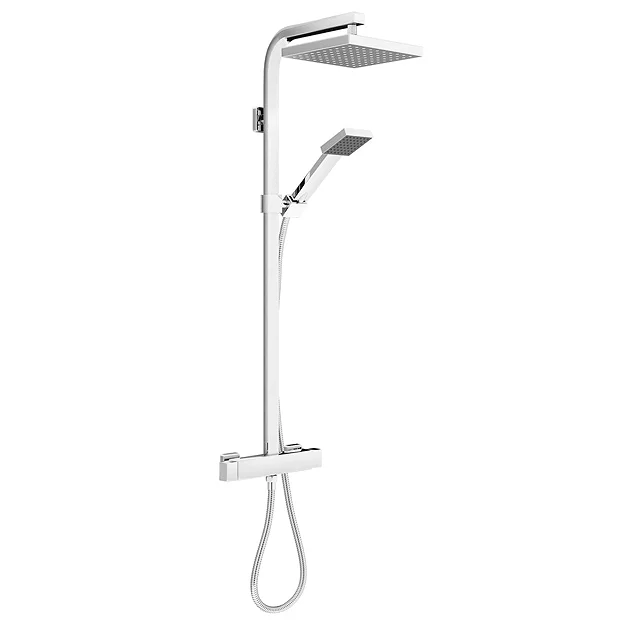

Exposed Shower Details

• Thermostatic shower, consisting of a square thermostatic bar valve and rigid riser kit with twin square shower heads
• High quality design and build
• Adjustable height
• Fixed Handset holder
• Latest ceramic disc technology
• Finished in highly polished chrome
• Thermostatic shower system that cuts out the risk of scalding
• Working pressure between 0.5 to 5.0 bar
• Minimalistic shower system
• 1.5m Quality flexible hose
• Easy to clean rubber jets which are included on both the main shower head and handset
• Incorporating diverter to control flow between overhead to hand shower
• One fixed head and one handset.
• Lightweight handset minimises risk of damage to bath and/or shower tray in case of accidental droppage.
• Square thermostatic mixing valve of brass construction with built-in diverter and polished chrome finish.
• Rigid riser with polished chrome finish.
• Easy installation
• 150mm between pipe inlet centres
• In the event of cold water failure, the valve will shut down to prevent scalding.

• Please note: Certain parts are chrome plated plastic, not metal
• Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

End Panel, taps + waste not included

All measurements are approximate

Tap holes have to be drilled by customer



Comprises

(1) 1700mm L-Shaped Square Shower Bath
(1) 1700mm L-Shaped Acrylic Front Panel
(1) 6mm Hinged Bath Screen
(1) Milan Modern Thermostatic Shower – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
